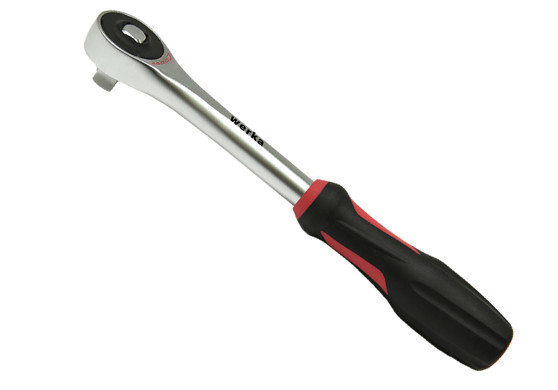

Double function ratchet
Double function ratchet
Double function ratchet
Double function ratchet
Double function ratchet
Double function ratchet

Double function ratchet

1. Standard function
For use in non limited spaces,levering of ratchet turns
square.
2. Rotation function
Opening function for handle (turning back the handle)
changes ratchet to rotation function.
Turning the handle moves the square; no levering
needed.
1) In rotation function the minimal needed turning angle
is
close to 0 degrees.
2) Because of easy opening and fixing function for the
handle.
Changing from normal function to rotating function is
always
possible,without losing the nut or screw.
ONE HAND OPERATION.
3) Already opened screws can be turned off easily
with the rotation function.
4) The new developed 2 components handle offers
sensitiv and egonomic working style.
5) The changing between right / left turning usage
will be done by square-section straight-through shank.
6) Overtops DIN and ANSI requirements in standard
operation
