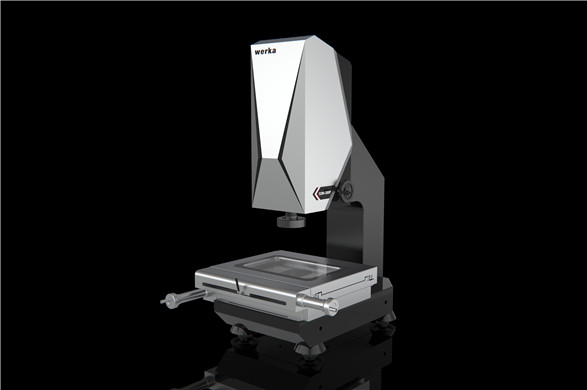

● High precision marble base and pillar to
ensures high stability and accuracy;
● High precision toothless rod and
fast moving locking device, to ensures
repeatability error is within 2um;
● High accuracy A grade optical linear
scale with precision working stage, to
ensure the accuracy is within 2.5+L/200um;
● High definitive detent zoom lens and high
resolution color digital camera to ensures
clear image without distortion;
● With programmable surface 4-ring
8-division LED Cold Illumination and
contour LED telecentric illumination and
built-in intelligent light adjustment, it can
automatic control the brightness in the 4-ring
8-division;
● Power ful function iMeasuring2.1
measuring software highly enhance the
quality control situation
