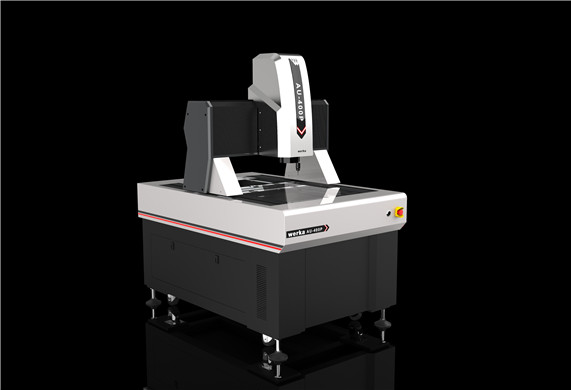

● Moving bridge type structure, measuring
workpiece is fixed;
● Four-axis CNC fully auto close loop
control, auto measurement;
● Marble base and pillar(grade 00), stable
and reliable;
● Imported linear scale, resolution is 0.1um,
grinding ball screw and AC servo motor etc.
to ensure the precision and stability of the
motion system;
● Imported HD color camera to meet the
needs of clear observation and accurate
measurement;
● 6.5x high-resolution motorized zoom
lens, accurate doubling and one times pixel
correction only needed;
● With programmable surface 5-ring
8-division LED Cold Illumination and contour
LED parallel illumination and built-in intelligent
light adjustment, it can automatic control the
brightness in the 8-division;
● Equipped with imported MCP Probe to
perform 3D measurement;
● With proprietary fully auto measuring
software powerful function, simple operation
